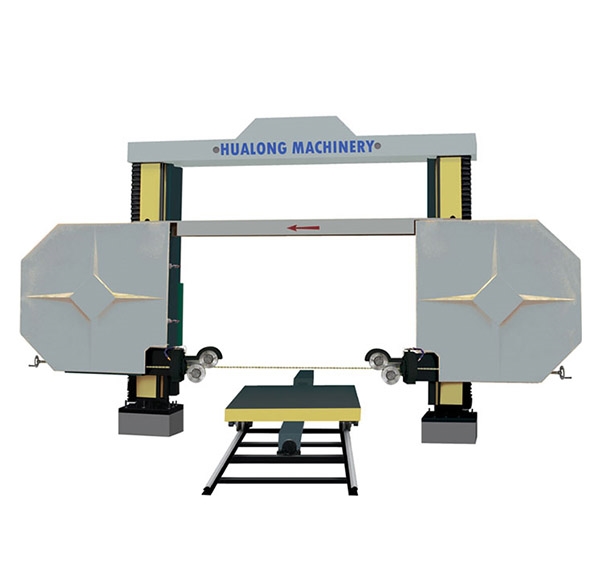

CNC Diamond Wire Cutting MachineHLSJ-2000數控金剛石繩鋸

領跑智能制造新“石”代

CNC Diamond Wire Cutting MachineHLSJ-2000數控金剛石繩鋸

所屬品牌:

所屬類別:產品庫

想了解更多相關產品信息,請聯系我們!

0594-2197723
hualongmc@163.com
我要咨詢
  • 產品說明
  • 技術參數

CNC金剛石線切割機
HLSJ-2000 采用數控控制,四軸聯動,能夠加工不同規格的石材以制作復雜形狀的制品,例如圓弧板、實心和空心柱、羅馬柱、大型實心線條、字母等等。

CNC Diamond Wire Cutting Machine

HLSJ-2000 adopts CNC control, four-axis linkage, can process different specification of stones for complex shape, such as circular arc board, solid and hollow column, Roman column, large-scale solid line, letter and so on.

主要特點
1)配備數控系統,使得人機交互界面既簡便又靈活。
2) 飛輪張力具有穩定且恒定的拉伸模式,可提高切割精度。
3)各種復雜的二維表面均可進行加工處理。
4)切割速度可根據不同需求進行調節。
5)效率極高,其所加工的板材尺寸精確,邊緣平整光滑。

Main Features

1) Equipped with CNC system, which makes the man-manchine interface easy and flexible.

2) Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy.

3) Diverse, complex, 2-dimensional surfaces can be processed

4) Cutting speed is adjustable according to different requirements.

5) High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.

名稱 Name 單位Unit HLSJ-1500 HLSJ-1800 HLSJ-2200
最大加工 尺寸 Nax processing dimensions mm 3000*2000*1500 3600*2000*1800 4000*2000*2100
串珠繩長度 String bead wire length mm 16500 19300 21350
串珠繩直徑 String bead wire dianeter mm Φ8-Φ10 Φ8-Φ10 Φ8-Φ10
切割線速度 Cutting wire speed m/s 0-40 0-40 0-40
總功率 Gross power kw 19.38 19.38 19.38
耗水量 Water consumption m3/h 2 2 2
外形尺寸 Dinensions(L*W*H) mm 7500*6000*380 8800*6800*4800 9800*7000*5200
重量 Gross weight kg 7000 10500 14000

溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯系我們。
