荒料切割設備

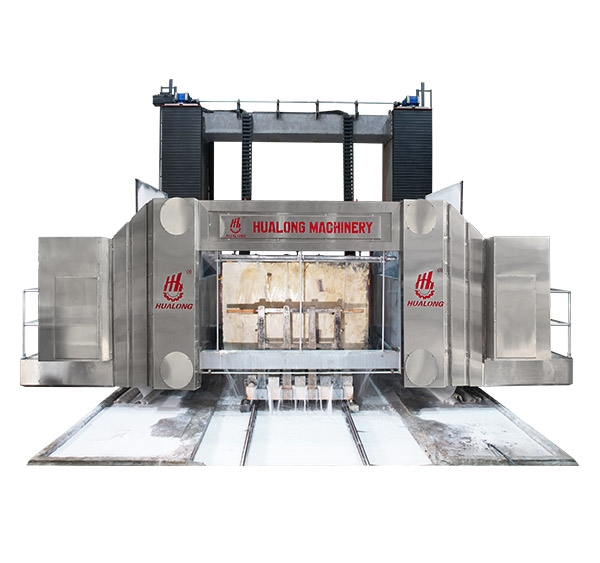

HLMW-100/150 Super Thin Multi Wire SawHLMW-100/150 石材線鋸

領跑智能制造新“石”代

HLMW-100/150 Super Thin Multi Wire SawHLMW-100/150 石材線鋸

所屬品牌:華隆

所屬類別:荒料切割設備

想了解更多相關產品信息,請聯系我們!

0594-2197723
hualongmc@163.com
我要咨詢
  • 產品說明
  • 技術參數
采購可留言電話號碼,我們會與您聯系! 點擊進入1688查看更多產品

Purchase please leave a message phone and email, we will contact you!

石材超薄多線鋸
HLMW-100/150 超薄多線鋸,由華隆機械研發的全新一代石材薄板切割技術的神奇設備,采用 0.3 - 0.8 毫米的超細金剛石線,成品率超過 97%。它是您將石塊切割成板材的下一臺理想設備,能帶來以下諸多益處:
優勢
(1)高產量 - 僅 0.4 - 0.7 毫米的切割槽的微型線鋸使產量超過 97%,比傳統線鋸高出 15 - 20%。
(2)減少石粉排放:超過 90%。
(3)降噪 - 無振動,降低噪音超過 40 分貝。
(4)可生產 10 毫米以下的超薄板材。
(5)高精度防止線痕,使板材平整度提高 50%。
(6)節能 - 由于切割摩擦力大幅減少,電力消耗降低 50%。
(7)節省空間 - 設備占地面積減少超過 30%。


Ultra Thin Multi Wire Saw Machine

HLMW-100/150 Super Thin Multi Wire Saw, an amazing new machine developed by HUALONG Machinery defining the next generation stone block cutting technology, with 0.3-0.8mm thin diamond wire brings yield rate more than 97%. It's the next machine of yours to cut block to slabs for much more benefits as follows:

Advantage

(1) High yield - Tiny wire saws with only 0.4-0.7mm cuting grooves enable a yield of over 97%, 15-20% higher than conventional ones.
(2) Emission Reduction of Stone Powder: over 90%
(3) Noise reduction - No vibration, reduce noise over 40 dB.
(4) Ultra thin slabs below 10mm can be produced
(5) High precision prevent wire marks and improves the slab flatness by 50%.
(6) Power saving - reduce 50% electric power consumption because of much less cutting friction.
(7) Space saving - reduce equipment footprint by more than 30%.


聯系我們,獲取完整方案!
Contact us to obtain the complete solution!





Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
華隆機械,數控五軸橋切機,四軸橋切機,4+1橋切,5+1橋切,三軸橋切機,紅外線橋切機,石材切機,石材加工廠設備,石材拋光機,石材拋光設備,石材加工中心,臺面加工中心,水刀,水刀切割機,礦山開采設備,礦山圓盤鋸,圓盤雙刀鋸,礦山機,礦山鋸。

名稱 NAME HLMW-100/150
最大存儲線量 Max.Volume of Stored Lines 30km/50km
工作線速 Operating Line Speed 25-40m/s
升降形式 Ascending & descending form Wire down pressure 線網下壓
主軸冷卻方式 Spindle cooling system Liquid cooling 液冷
金剛線直徑 Diameter of diamond wire 0.3-0.8mm
加工厚度 Thickness of slabs cutted 5-30mm
主軸最高轉速 Max. spindle speed 3000Rpm/min
最大切割長度 Max. cutting length 3500mm
最大切割高度 Max. cutting height 2000mm
最大加工荒料尺寸 Max. dimensions of block processable 3500x2100x2100mm
主機功率 Main motor power 60kw
設備總功率 Gross power 310kw
機臺尺寸 Machine dimensions 7800x4800x6580mm

溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯系我們。
